AI-Driven 3D Model Generation: How We Turn 2D Art into Collectible Sculptures and STL Files
An end-to-end pipeline: from 2D concept art through neural mesh reconstruction, automated retopology and manifold repair to precision SLA/FDM 3D printing.
An end-to-end pipeline: from 2D concept art through neural mesh reconstruction, automated retopology and manifold repair to precision SLA/FDM 3D printing.
Combining generative AI with precision 3D printing opens a new chapter in digital sculpting. In our Dortmund lab, we have developed a repeatable process that turns a flat concept sketch into a physical, print-ready sculpture with clean geometry.
⚡ Key takeaways:
- 🧠 From 2D to 3D mesh: local neural models generate 3D point clouds and voxels in under 60 seconds.
- 🛡️ Watertight (manifold) meshes: automated retopology removes self-intersecting polygons and flipped normals.
- 💎 Physical production: finished models go straight to 8K SLA resin printers and industrial CoreXY FDM machines.
1. Single-image 3D reconstruction and multi-view synthesis
The starting point is a single 2D image. We use locally run models that work in two different ways:
- TripoSR (Stability AI and Tripo AI) is a fast feed-forward 3D reconstruction model based on the LRM (Large Reconstruction Model) architecture. A transformer maps a single RGB image directly to a triplane NeRF representation, from which a mesh is extracted with Marching Cubes — with no intermediate views and no diffusion. According to its authors, this takes about 0.5 s on an NVIDIA A100 GPU.
- InstantMesh and LGM first generate consistent views of the object (e.g. front, side, back) with a multi-view diffusion model and then reconstruct the 3D shape from them.
The following steps rely on:
- 📐 Normal and depth maps: photometric estimation of surface normals with per-pixel accuracy.
- 🔬 Neural Radiance Fields (NeRF) / 3D Gaussian Splatting: a volumetric representation that captures fine folds and micro-detail.
- ⚙️ Marching Cubes algorithm: converts the dense voxel grid into a high-resolution polygon mesh (up to 3.5 million triangles).

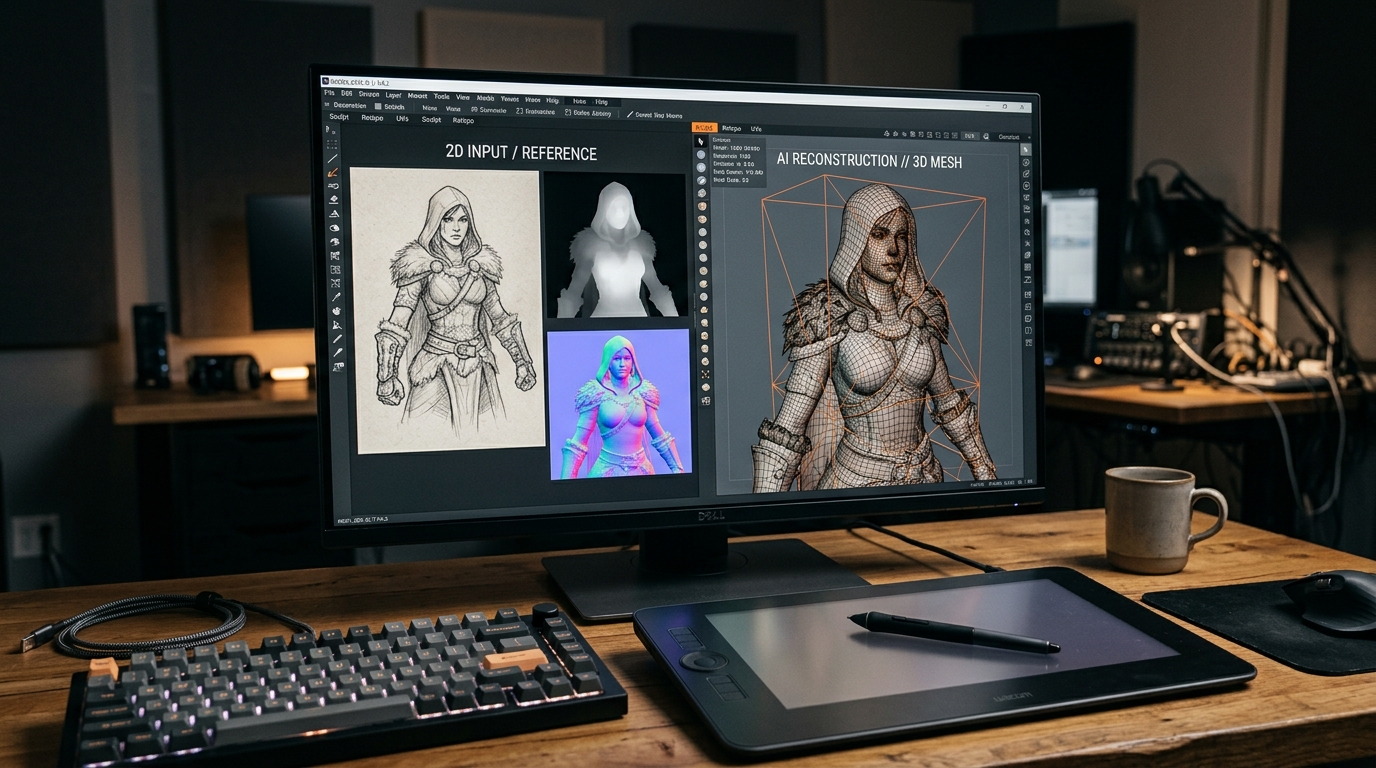

Digital 3D mesh reconstruction from concept art in our lab
2. Comparison of AI 3D generation methods
| AI architecture | Generation time | Mesh density | Production use |
|---|---|---|---|
| Feed-forward reconstruction (TripoSR) / multi-view diffusion + reconstruction (InstantMesh, LGM) | ~25–45 s | ~1.2M triangles | Humanoid characters, busts, creatures |
| 3D Gaussian Splatting (3DGS) | ~90 s | Ellipsoid cloud | Flowing organic forms and fabric drapery |
| NeRF + Poisson Surface Reconstruction | ~3–5 min | ~4.5M triangles | Architecture, altars, collectible dioramas |
The times in the table are approximate and cover the entire generation stage. According to its authors, TripoSR alone produces a mesh from a single image in about 0.5 s (NVIDIA A100 GPU).
3. Retopology and STL preparation (watertight mesh)
A raw AI-generated mesh is rarely printable straight away — it contains millions of disordered triangles and topological holes.
Our automated pipeline performs:
- Adaptive decimation (QEM): reduces the polygon count while preserving sharp anatomical edges — file size drops from 850 MB to ~45 MB with no visible loss of detail.
- Manifold repair: automatically closes holes and removes disconnected vertices.
- Convex decomposition and keying: splits complex statues into modular parts joined with interlocking keys.
- Hollowing: a 1.8 mm wall with internal drainage channels saves up to 65% of UV resin and reduces peel forces between the layer and the FEP film.

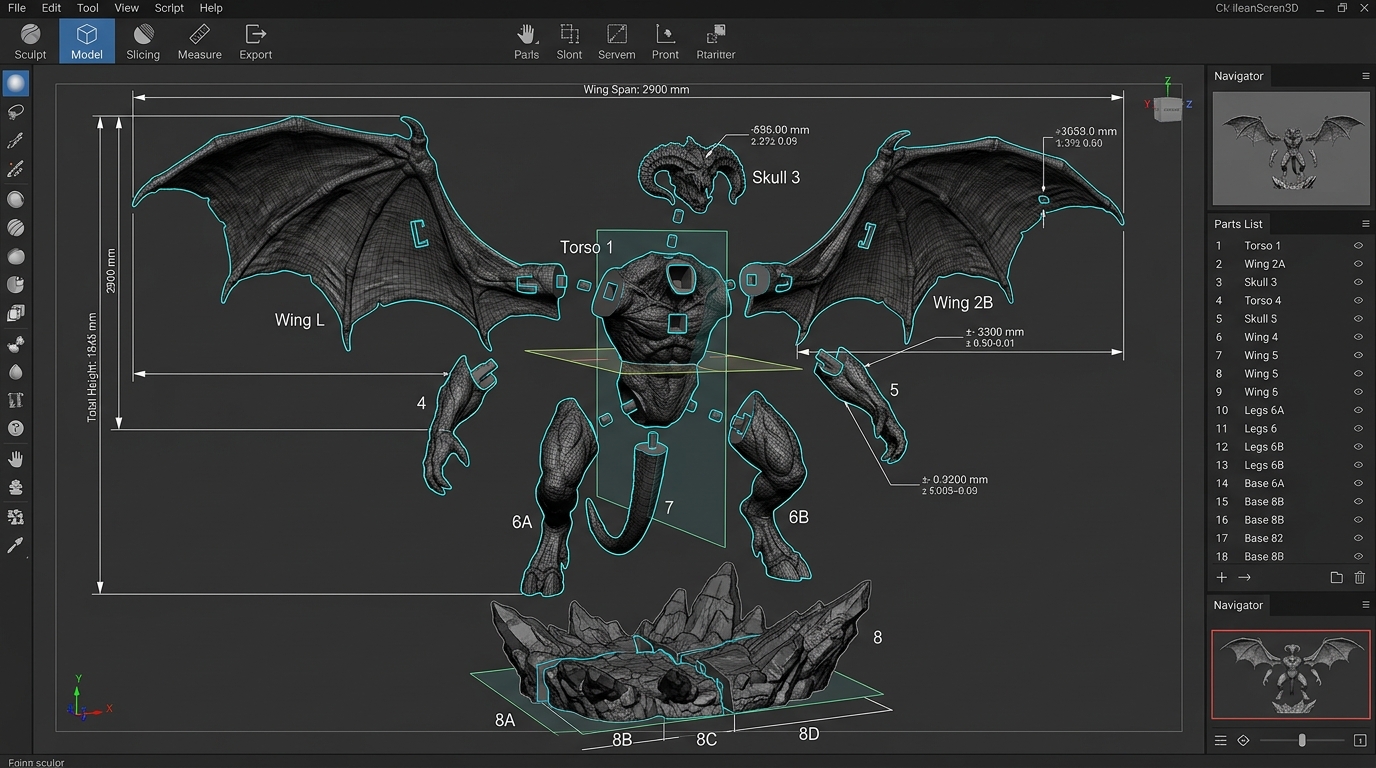

Finished Balrog collectible sculpture prepared for modular printing
4. Slicing and print settings (FDM vs SLA)
Below are the optimal settings for printing the generated sculptures:
- Completed: SLA printing (8K UV resin): 0.03 mm layer height, 22 s bottom-layer exposure, 1.8 s normal-layer exposure.
- Completed: FDM printing (CoreXY, ASA/PETG): 0.12 mm layer height with adaptive smoothing, 4 perimeters, 15% gyroid infill.
- Completed: Orientation: tilt the model 35–45° relative to the build plate to minimize the cross-section of each layer.

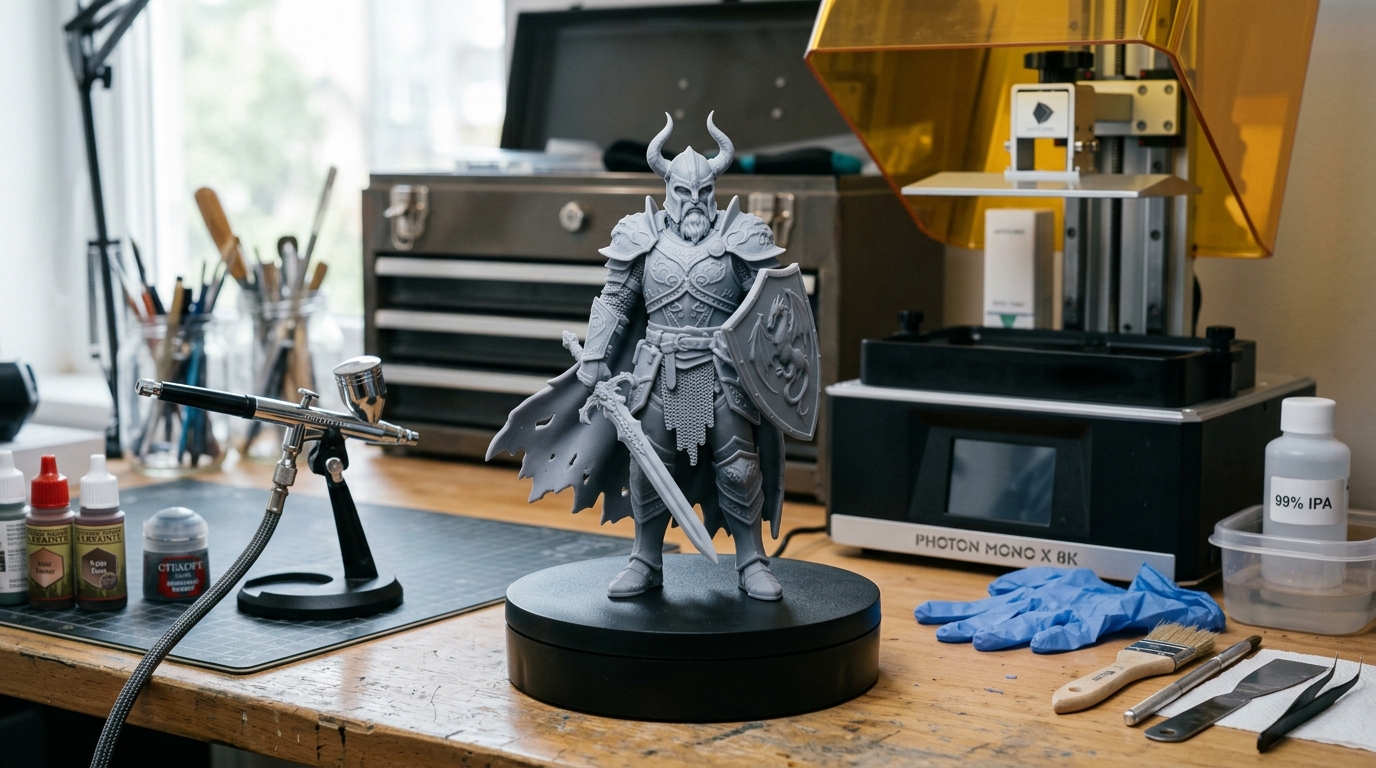

Cured UV resin print ready for post-processing and painting
5. See the results in our gallery
Using this workflow, we created collectible sculptures such as:
- 🔥 Balrog of Moria – a monumental sculpture with dynamic wings and volcanic rock textures.
- 🕯️ Baphomet Cult Altar – a gothic cult diorama with intricate micro-reliefs.
- 🩸 Asylum Ghouls – an anatomical study of horror and deformity.
You can view all of these projects in high resolution or order them as physical prints directly in our 3D Works Gallery.
Looking for a custom 3D model? Get in touch with our workshop via the contact form.
